Product description

Autoroad 77GHz medium range millimeter wave radar has been upgraded to the second generation AMRR200, which has longer detection distance and can accurately detect the distance, speed, angle and height of the target within 200m. Compared with the first generation product, it has better performance indexes in angle accuracy, angle resolution, distance accuracy, distance resolution, speed measurement accuracy and speed measurement resolution. AMRR200 is light in weight and easy to install and configure. It’s able to detect foreign object shielding, and auto-align in pitch and horizontal directions.

AMRR200, as a forward radar, supports adaptive cruise control (ACC), automatic emergency braking (AEB), forward collision warning (FCW), etc. in ADAS.

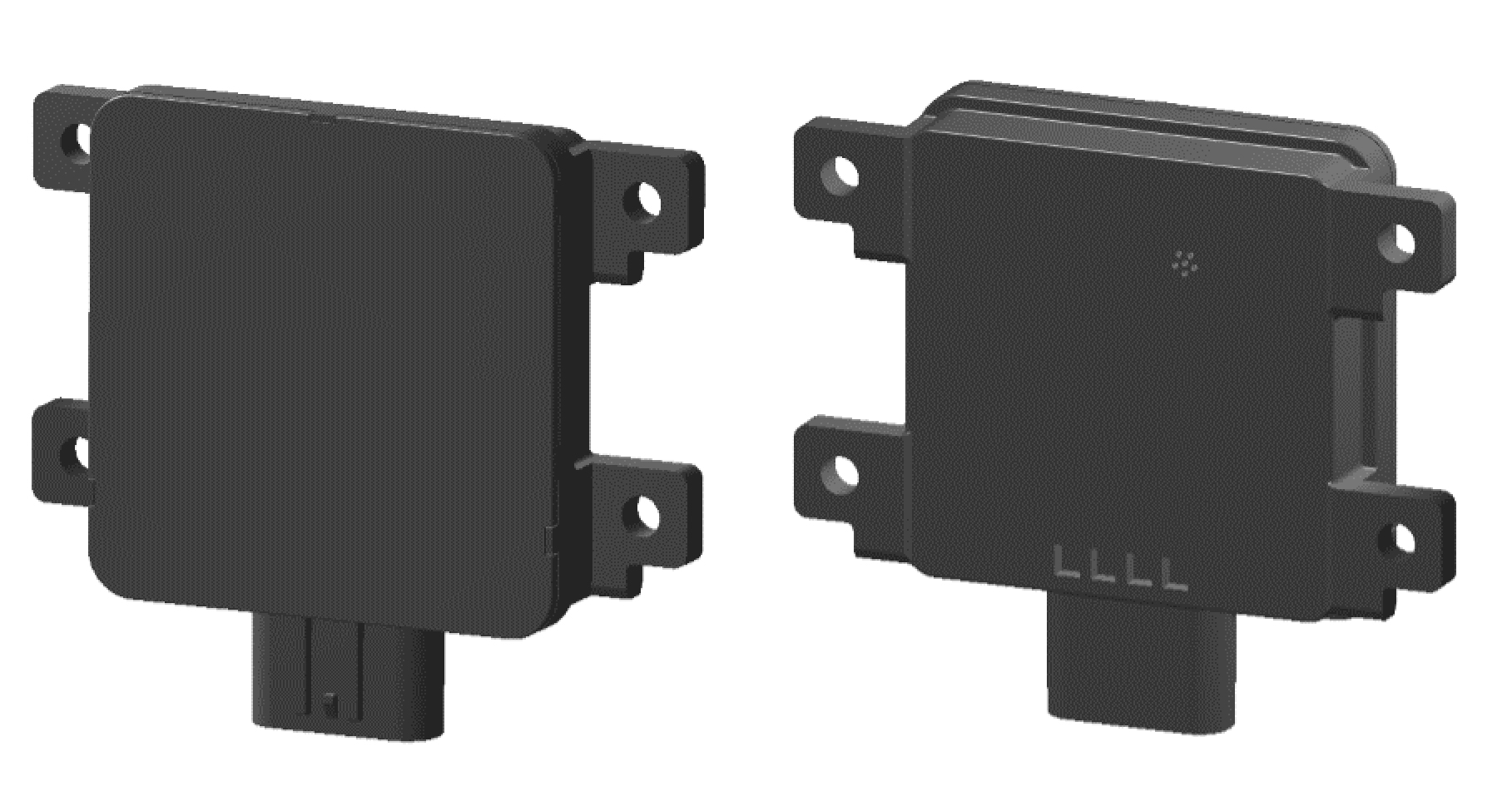

• Product design



• Product parameters

  ItemAMRR200

  Refresh cycle50 ms

  Detection distanceVehicle: 0.5 m ~ 200 m
  Pedestrian: 0.5 m ~ 70 m

  Range accuracy±0.15 m

  Range resolution0.5 m

  Speed measurement range-260 km/h ~ 130 km/h

  Speed measurement accuracy±0.1 m/s

  Speed measurement resolution0.3 m/s

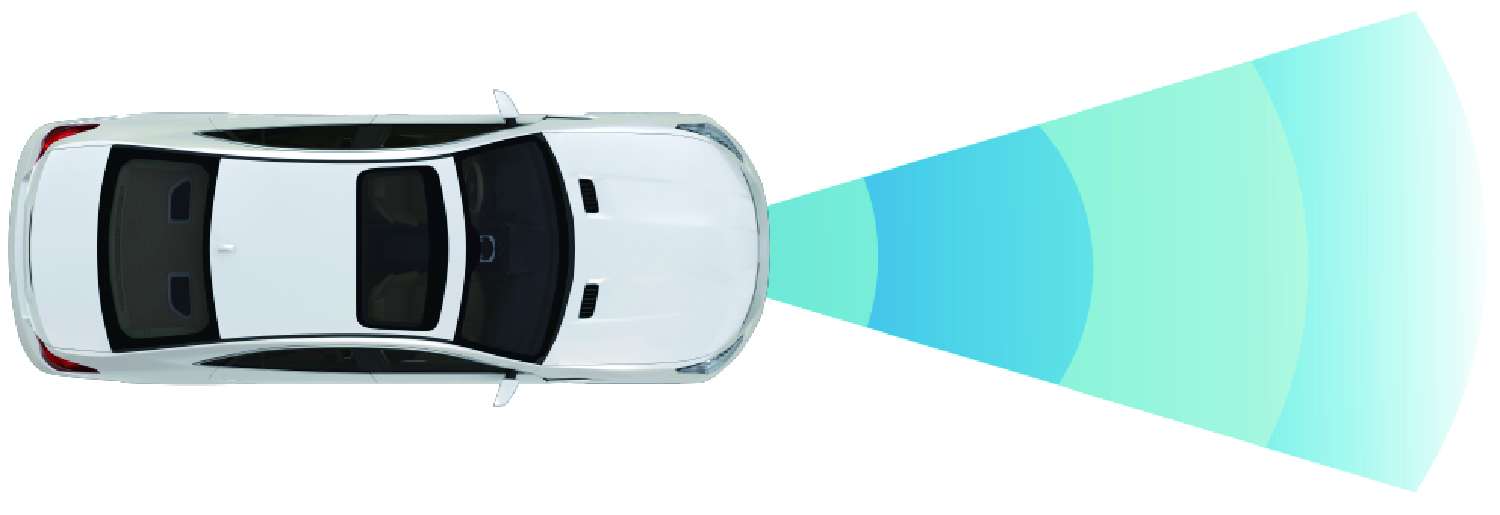

  Azimuth FOV±5° @ 200 m
  ±15° @ 100 m
  ±22° @ 60 m
  ±45° @ 30 m

  Azimuth accuracy±0.3° @ 0°

  Azimuth resolution3°~ 7°

  Pitch detection range-6°~ 6°

  Max tracking targets number64

  Size (Width x Height x Depth）92 mm x 81 mm x 20 mm

• System function

  Forward Collision Warning（FCW）

  Adaptive Cruise Control（ACC）

  Automatic Emergency Braking（AEB）
